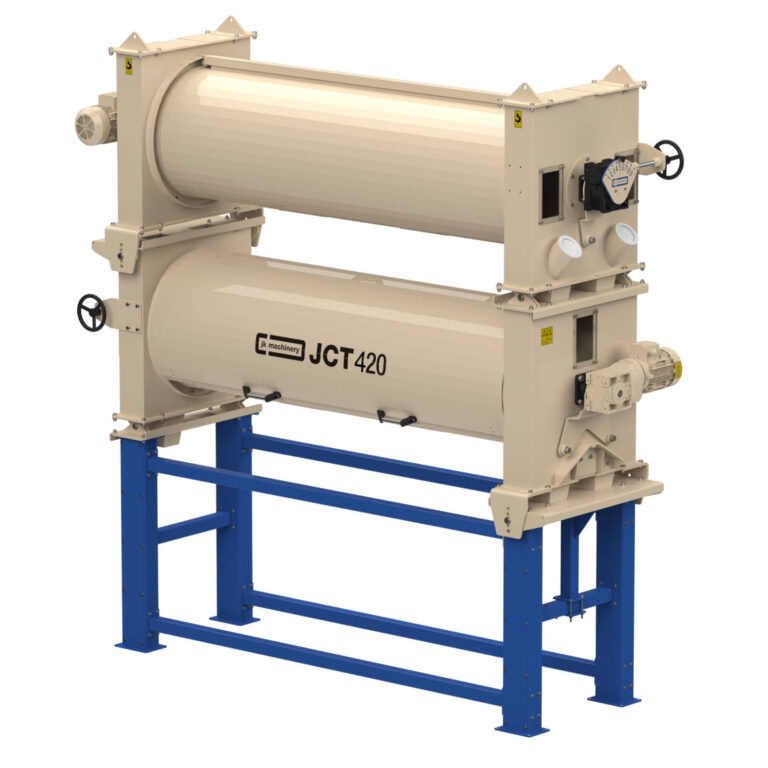

JCT Indented Cylinders

JCT Indented Cylinders

JCT Indented Cylinders are designed for separation of impurities and admixtures which has different grain shape (length) from the main material flow.

Cylinder diameter: 400-700 mm
Cylinder length: 1000-4000 mm
Capacity: 1-16 t/h

Function:

R – separation of short and round admixtures
L – separation of log admixtures
RL – combined separaion of short/round and long admixtures

Variants:

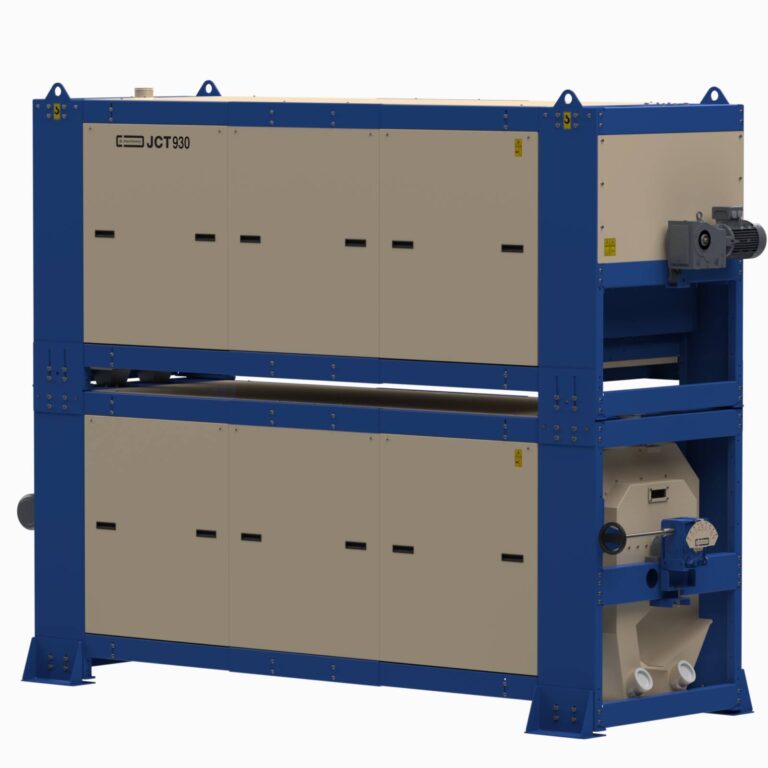

  • 2 or 3 parallel cylinders
  • pre-separating cylinder „Pyramid“
  • different variant of re-separating cylinders including perforated sheet version

HAVE A QUESTION?

Our specialists and engineers are ready to help you.

Contact Us
Benefits:
  • easy adjustment at different grain variety
  • high capacity machine with compact construction
  • easy installation, commissioning and operation
  • robust construction with operational reliability
Product line JCT 415 R(L) 615 R(L) 620 R(L) 625 R(L) 630 R(L) 730 R(L) 415 RL 615 RL 620 RL 625 RL 630 RL 730 RL
PERFORMANCE
Wheat t/h 1,7 (1,5) 3,5 (3,0) 5,0 (4,0) 6,5 (5,0) 8,0 (6,0) 12,5 (8,5) 1,5 3,0 4,0 5,0 6,0 8,5
Barley t/h 1,3 (1,2) 2,8 (2,4) 4,0 (3,2) 5,2 (4,0) 6,4 (4,8) 10,0 (7,5) 1,2 2,4 3,2 4,0 4,8 7,5
Oat t/h 1,0 (0,9) 2,1 (1,8) 3,0 (2,4) 3,9 (3,0) 4,8 (3,6) 7,5 (5,1) 0,9 1,8 2,4 3,0 3,6 5,1
DIMENSIONS
Length mm 2365 2380 2880 3430 3930 3930 2500 2600 3100 3700 4200 4200
Width mm 750 950 950 950 950 950 750 950 950 950 950 950
Height mm 1080 1210 1210 1210 1210 1210 1830 2080 2080 2080 2080 2080
OTHER
Input Power kW 0,75 1,1 1,1 1,5 2,2 2,2 2x0,75 2x1,1 2x1,1 2x1,5 2x2,2 2x2,2
Air Consumption – exhaustion m³/h 288 468 468 468 468 540 540 900 900 900 900 1080
